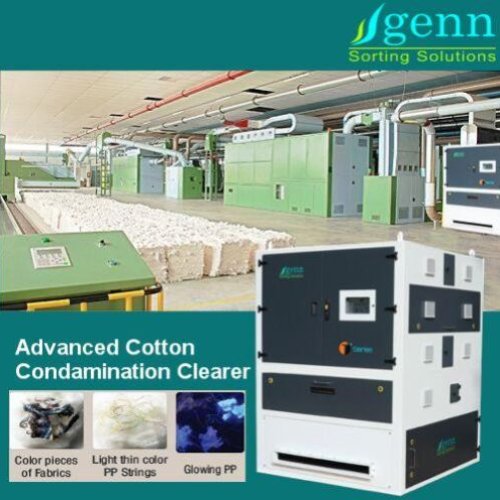

Textile Cotton Contamination Machine
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GENN |
| Driven Type | Pneumatic |
| Condition | New |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
· Optical System equipped with HD Spectral Vision Technology for detection of minute colour contaminants.
· Ultra Sonic System ensures better accuracy & reliability in detecting Polypropylene contaminations.
· High Spectral Purity Of UV Light Source System for Brightened Polypropylene Object.
Features
Applicable Contamination remover in Ginning
Capacity(T/H) 1000 kg/hr
Voltage(V/HZ) 220v/50hz
MW Power(Kva) 2
Air Consumption(CFM) 15
Camera Nikon lens
Color Tri chromatic RGB(red,green.blue)
Sensor Toshiba brand CCD with 16200pixel
Scanning speed 30 MHz
Core (FPGA + DSP) Xilinx chip
Power supply Mean well brand power supply
Display Weintek brand display
Touch screen Weintek brand touch screen
Fliter SMC brand
Valve 10 Million times high-frequency ejectors
No.of cameras 12
Operating system The advanced Embedded operating system
Human interface Color LCD touch screen for human interface
Wirless internet connect Support
Remote control Diagnosis,Debugging and software upgrading
LED source High luminance,low power consumption,100k hours
No.of high accuracy speed ejector valves 36
Camera operation lines/sec 12000 times/sec
Ejector Max operating frequency 100HZ+
Valve ON/OFF response time within 5 - 6.5 ms
Dimension(mm)(L*W*H*) 1954x1450x2322
